"Fringe-MasterTM for Windows" static and phase shifting fringe analysers

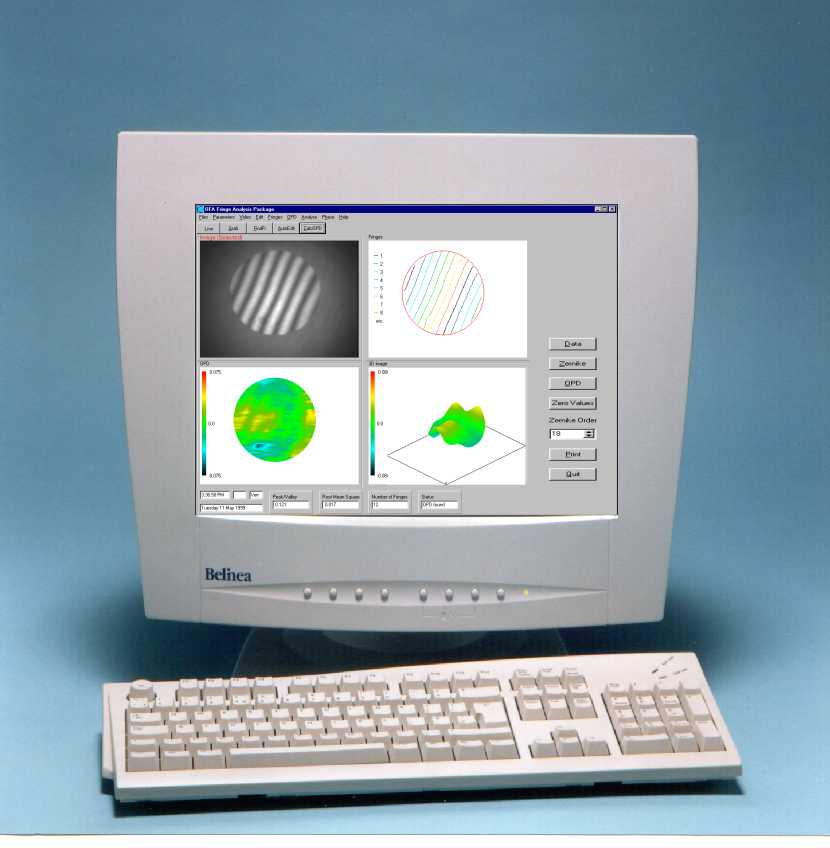

Fringe-Masterä for Windows is the latest automatic fringe analyser from OFA

"Fringe-Masterä combines advanced digital image processing hardware, the most up to date software, the power of Pentium computers and proven fringe analysis algorithms .....

... the result is the most powerful, cost effective fringe analyser available!"

Use Fringe-Masterä with your existing interferometer to give quantitative results in seconds. Fringe-Master is already at work in Government laboratories, in industry and in UK and European universities.

 Send for a DEMO DISC and evaluate the full functionality of Fringe Master yourself!

 Download a full colour brochure or the complete User Manual (requires password)





Specification

  Static and phase shifting analysis integrated in one software package

  Limiting accuracy better than 1/50 wave (static) or 1/100 wave (phase shifting) Peak-to-Valley with 8 bit, 768 x 576 resolution hardware

 TTL trigger input enables image acquisition from single shot events

  User friendly point & click software runs under Windows '98 or NT

  RS170 & CCIR format image input

  Calibrated against National Standards

  Ideal for the analysis of fringes from radial shear interferometers for laser wavefront measurement

Software

  Static fringe tracking

  Phase shift option

  O.P.D. calculation

  Hard copy output from Fringe Masterä

  Parameter files for multiple test set-up

Data Analysis

  Histogram of P-V & r.m.s.

  Zernike analysis to 45 terms

  Seidel coefficients

  M.T.F., Point Spread and Strehl Ratio

Free Analysis Offer

Send us some of your OWN INTERFEROGRAMS, either in electronic form by e-mail or hard copies in the post or by fax and we will get back to you with an assessment. We are confident that we will see the advantages of Fringe Masterä for your fringe analysis requirements.

E-mail us at sales@ofa-ltd.com to request your new Fringe Masterä demonstration disc or for further information of our systems.
