Laser Beam Profilers

The LBM range of Laser Beam Monitors covers laser beam monitoring applications of wavelengths from 193nm to 1.06 microns.

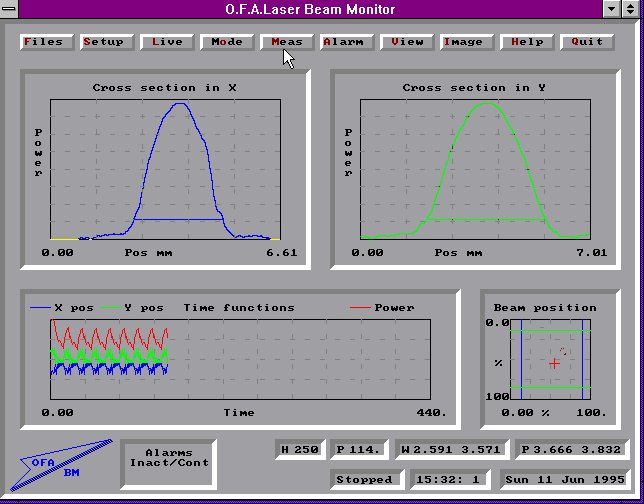

{LBM Top Level Screen}

The LBM top level software screen shows X & Y profiles, position and power/energy as a function of time.

LBM can sample repetitive lasers at up to 8Hz at 512 x 512 resolution and is equipped with sophisticated archival and replay facilities. For single shot or low repetition sources, automatic synchronisation is available using a proprietory image inspection algorithm.

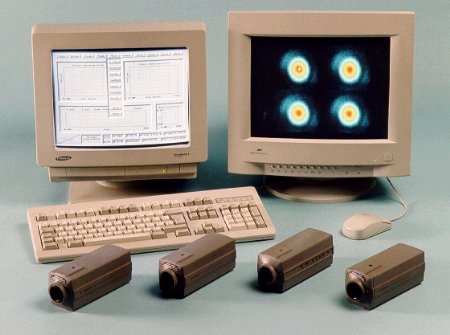

{4-channel version of the LBM profiler}

LBM-4 provides simultaneous capture of 4 images for advanced laser monitoring applications

LBM is available in a range of options from single to 8 channels, for single shot, high repetition rate or c.w. laser monitoring.

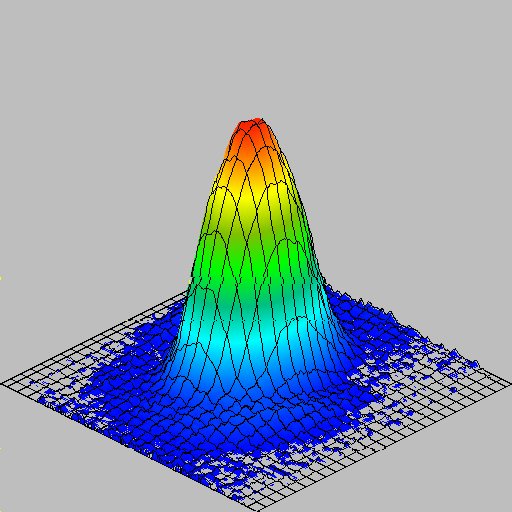

{3-D plot of YAG profile}

3-D plot of a single shot, high power Nd:YAG laser
This WEB page is currently under construction. Please contact OFA direct for further details.
